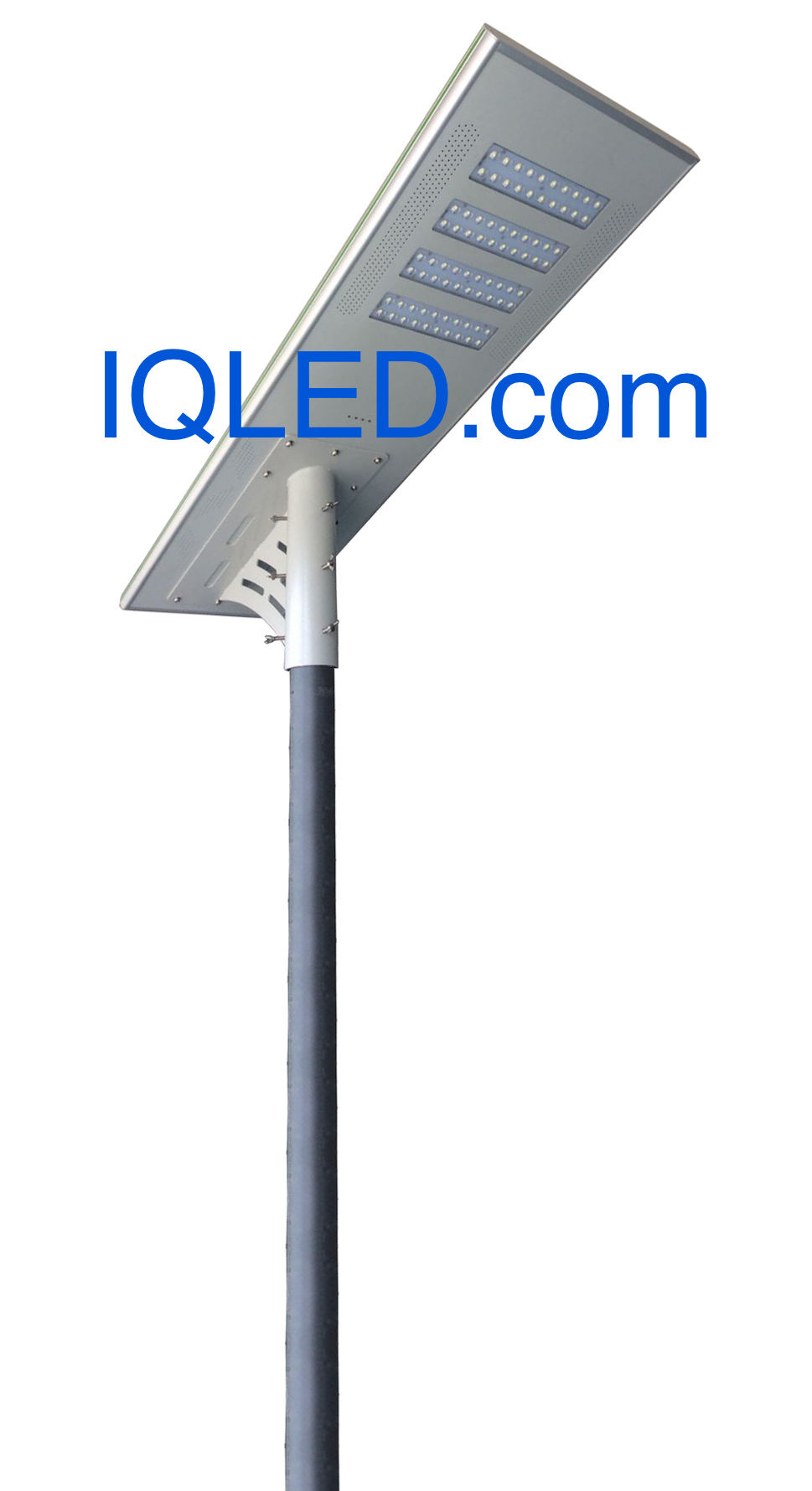

Airport Security Lighting Solar Light all in one integrated 8800 Lumens 80 Watts
Manufactured by IQLED.com
In Stock: Florida USA / Barcelona Spain / Milano Italy / New York USA / Nimes France / Germany / Switzerland
Airport Security Solar Light LED Integrated 8800 Lumens 80 Watts, Solar Light all in one integrated 8800 Lumens 80 Watts
Your next scheduled maintenance will be in 5 to 7 years!
Solar Powered LED light integrated high efficiency solar panels, controller, high-capacity lithium-ion battery and LED Lighting technology into a small compact housing unit.
- Lumen (LM): 8800-8000lm.
- Solar Panel Max Power: 33V/100w (high efficiency silicon solar cell)
- Battery Type: 25.6V lithium battery (Life time +5-7 years).
- LED Power: 30V 80W (Bridgelux from USA with high brightness).
- Mounting height: range (m) 9-10m - 30 feet.
- Space Between Lights: (m) 30-35m - 80 - 90 feet.
- Viewing Angle: 120°.
- Charge time by sun: 6-8 hours (with enough strong shine).
- Working time: Over 12 Hours.
- Working Temperature range: ( °C ):-20°C~+60°C
- Color Temperature range: (k): 6500k-7000k.
- Discharge time: Over 12 Hours.
- Over charge/discharge protection.
- Certificate: SO/CE / ROHS / IP65
- LED Life Time: 5000 hours.
- System Warranty Period: 2 Years.
- Solar Modules Life Time: 25 Years.
- Fixtures Luminaries IQLED
- Solar Panel.
- Structure for solar panel.
- Microprocessor controlled Charge controller and Timer.
- Batteries: Long-Life - Deep-Cycle - Maintenance-Free.
- Detailed instruction manuals included in every system.
Solar Lighting Applications:
- Area Lighting.
- Parking Lot lighting.
- Perimeter Security Lighting.
- Street lighting.
- Security Light.
- Highway and ramp lighting.
- Highway Roadway Lighting.
- Residential, Industrial, Commercial lighting.
- Solar Lighting
- Solar Power LED Street Lighting.
- Solar Parking Lot Lights.
- Solar Security Parking Lot Lights.
- Solar LED Street lighting.
- Hospital Lighting.
- Hospital Parking Lot Lighting.
- Airport Lighting.
- Airfield Solar Perimeter Lighting.
- Airport Solar Perimeter Lighting.
- Bridge lighting, Under Pass lighting.
- Military Security Lighting.
- Military Perimeter Security Lighting.
- Easy installation no wiring required.
- Installing and moving is easy no more waiting for the utility company!
- Proven technology. Vandal and theft-resistant components and hardware. All parts are corrosion resistant.
- Low installation cost.
- Easily and quickly deployed in almost any location.
- NO wiring run from the grid.
- NO cuts through existing roads, sidewalks or landscaping.
- NO Maintenance.
- NO Utility bill.
- Maintenance Free Batteries!
- Big Credits and Savings form State and Federal Taxes.
- Better Color Rendition & Nighttime Visibility.
- No Warm-Up or Cold Start Problems.
- Component lifetime of 25+ years.
- Solar modules are made of high efficiency back-contact solar cells.
- Use high capacity batter.
- Light in weight, easy installation, no need for extra cable or wiring.
- Intelligent control, safety and stability.
Activation Switch On/Off:
POLE NOT Included (check optionals).
Packaging information: Brown Box (Individual Packing for each part and Palletized).
- Solar Street, Parking Lot and Security light is an intelligent system, which can sense human activity and increases its brightness intensity level
- high quality designed to reduce freight and shipping cost as they are light weighted, and compact in size. Installation, it is extremely easy to deploy anywhere any time. The complete lighting system is built into one compact housing unit and no wiring is required. It is simply installed by clamping its brackets onto a conventional pole.
- LED Lighting anywhere any time Deploy in about 5 to 10 minutes. Ruggedized IQLED OkSolar End-to-End Lighting protection for Civil and Military Applications. Mobile Units deploy worldwide and at a moments notice, rugged enough to withstand transits to the location and operations anywhere anytime.
Dark Sky: Night sky preservation, We work directly with conservation experts and park officials to minimize ecological impact, preserve and protect the night environment while protecting dark skies for today and tomorrow.
Reducing glare to increase visibility. Glare from street lights is significantly reduced with the new IQ LED street-light fixtures, increasing visibility by directing light onto the roadway and preventing it from shining into the eyes of motorists.
Reduce excessive lighting and light pollution. New ways of designing and providing street lighting have been developed in the last several years. Luminaires produce high quality white light @ 5500K - 7000k color temperature which greatly enhances the nighttime visibility, color rendition & Scotopic (nighttime) visibility of the human eye.
WIND LOADING CAPABILITY Map: Standard mounts are designed to withstand 30 lbs. / ft. 2(approximately 90 mph or 145km/hr.). Designs capable of withstanding greater loads are available upon request. Wind Load: Withstand 150 MPH winds Certified to meet or exceed ASCE-7-05 specifications for 150 MPH, Exposure D extreme wind event!
Pole Spacing for Solar Area Lighting.
More information on How to determine Pole distance contact usx= Distance in units of Mounting Height
Solar Lighting Design Guide
The following solar outdoor lighting design tips provide general guidelines for lighting design. These guidelines may not apply to all applications. Visual is a collection of lighting calculation tools and powerful 3D modeling software engineered to simplify the design process and provide comprehensive analysis for lighting projects.
Solar Powered LED Lighting System Designed for Zone 4
Zone Type:To determine the Zone that you are in Contact us for Information on World Daily Solar Radiation Zones .
